The Moza Upgrade Guide: Mounting R5 Bases and CRP2 Pedals to Compact Rigs

Upgrading to a Direct Drive (DD) system is a milestone for any sim racer, but the transition from a Logitech G29 or Thrustmaster T150 to the Moza ecosystem often reveals a hidden challenge: mechanical compatibility. While Moza hardware offers professional-grade performance, its mounting requirements often exceed the design limits of popular entry-level rigs like the Playseat Challenge or SimLab P1X.

The Compatibility Gap: Why Your New Moza Gear Doesn't Fit Your Old Rig

The primary issue stems from the shift in torque and braking force. Entry-level cockpits were designed for gear-driven wheels that produce minimal vibration and pedals that require light foot pressure. When you introduce a Moza R5 wheelbase or CRP2 load-cell pedals, you are dealing with concentrated forces that standard thin-gauge steel plates weren't built to handle.

Furthermore, Moza’s specific bolt patterns—particularly on the newer pedal sets—often do not align with the pre-drilled holes on older "universal" mounting plates. This leads to the frustrating realization that your high-end upgrade is literally hanging by a single bolt.

Mounting the Moza R5 to Playseat Challenge: What You Need to Know

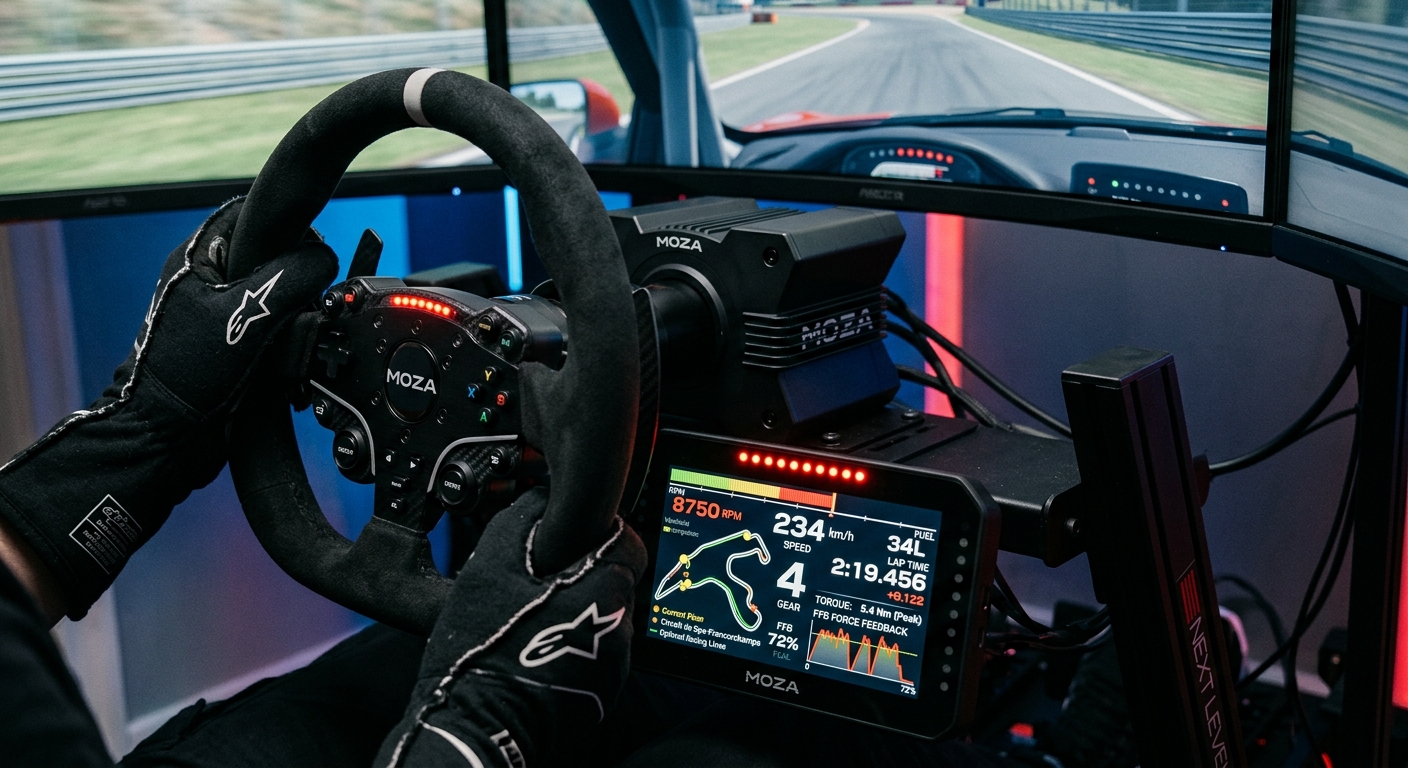

Mounting the Moza R5 to a Playseat Challenge or the newer Challenge X is one of the most common upgrades for space-constrained racers. While the R5 wheelbase is compact, its bottom-mount pattern requires specific alignment.

Direct Mounting vs. Adapters

The Playseat Challenge wheel deck is notoriously thin. While you can sometimes line up two of the four holes for the R5, this creates a pivot point that will eventually fatigue the metal. It is highly recommended to use a dedicated adapter plate. If official Moza adapters are out of stock, many users opt for a "hard mount" approach by drilling two additional holes into the Playseat deck using a cobalt drill bit to ensure a four-point connection.

Managing the Center of Gravity

Because the R5 is heavier than budget wheels, it can make the Playseat Challenge front-heavy when the "gate" is open. Ensure your straps are tightened and consider adding counter-weights to the rear frame to prevent the rig from tipping during ingress or egress.

How to Fix the Moza CRP2 Pedal Flex on Entry-Level Platforms

The Moza CRP2 pedals are a masterpiece of engineering, but their load-cell technology can apply over 100kg of force. On a standard foldable rig, this force doesn't go into the brake—it goes into bending the pedal plate.

To eliminate flex:

• Reinforcement Bars: Use aftermarket struts or DIY threaded rods to connect the pedal plate directly to the main frame.
• The Plywood Hack: A common DIY fix involves bolting a 15mm piece of marine plywood to the rig’s pedal base first, then bolting the CRP2 pedals to the plywood. This spreads the load across the entire metal surface.
• Angle Adjustment: Mounting the pedals at a flatter angle can reduce the "lever effect" that causes the front of the rig to lift under heavy braking.

Out of Stock? Creative Mounting Solutions and Third-Party Plates

Official Moza mounting brackets are frequently backordered due to high demand. Fortunately, the sim racing community has developed several alternatives:

1. Simxpro and Custom Plates: Companies like Simxpro offer universal pedal plates that are much thicker than stock equipment and feature slotted holes compatible with Moza CRP2 and SRP2 patterns.

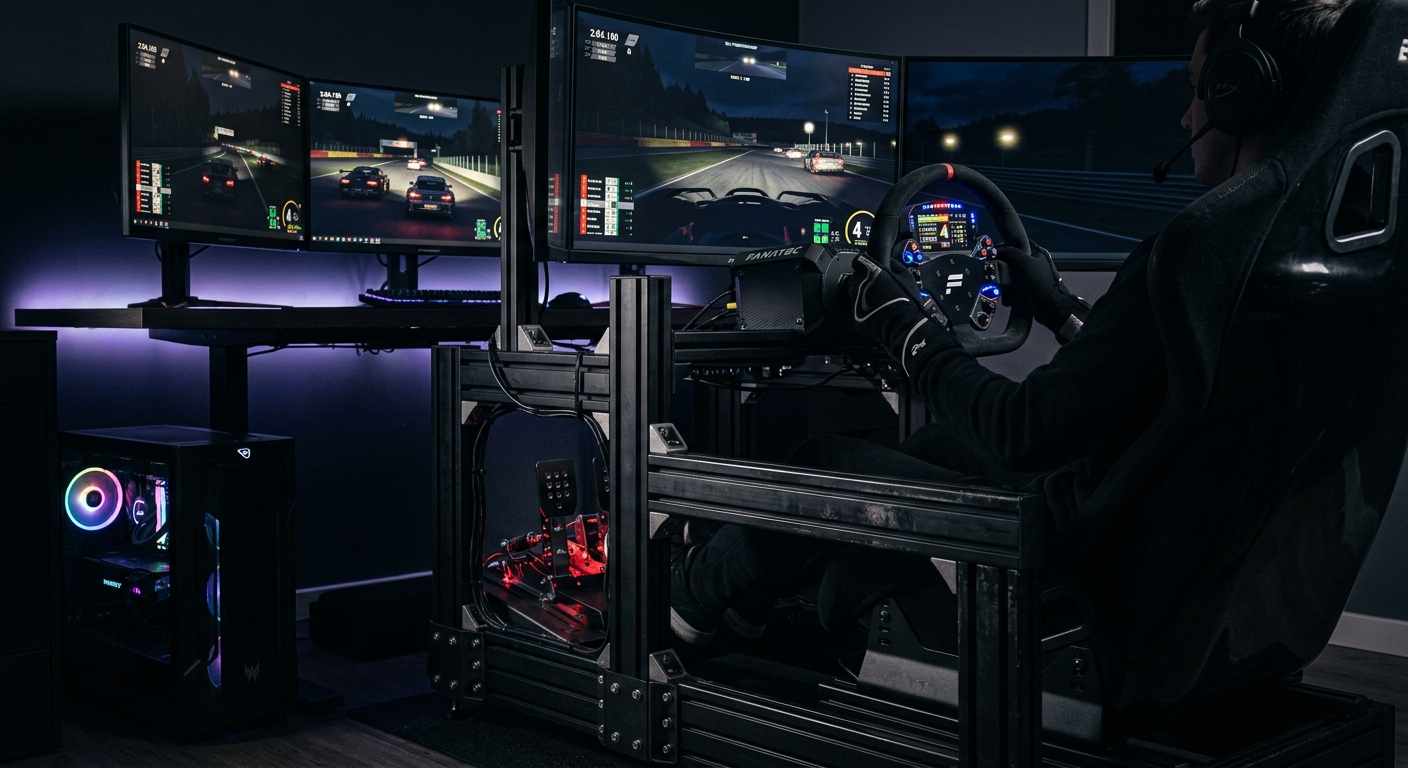

2. V-Slot Extrusions: For SimLab P1X owners or those with modular rigs, adding two short lengths of 4040 aluminum extrusion can create a custom "bridge" for any Moza wheelbase.
3. Local Fabrication: A local machine shop can often laser-cut a 5mm steel adapter plate for less than the cost of international shipping for official parts.

Structural Upgrades: Making Your Foldable Rig Ready for Direct Drive

Before you can focus on your lap times, your rig must be a rigid platform. A "flexy" rig absorbs the subtle Force Feedback (FFB) details that the Moza R5 is designed to communicate.

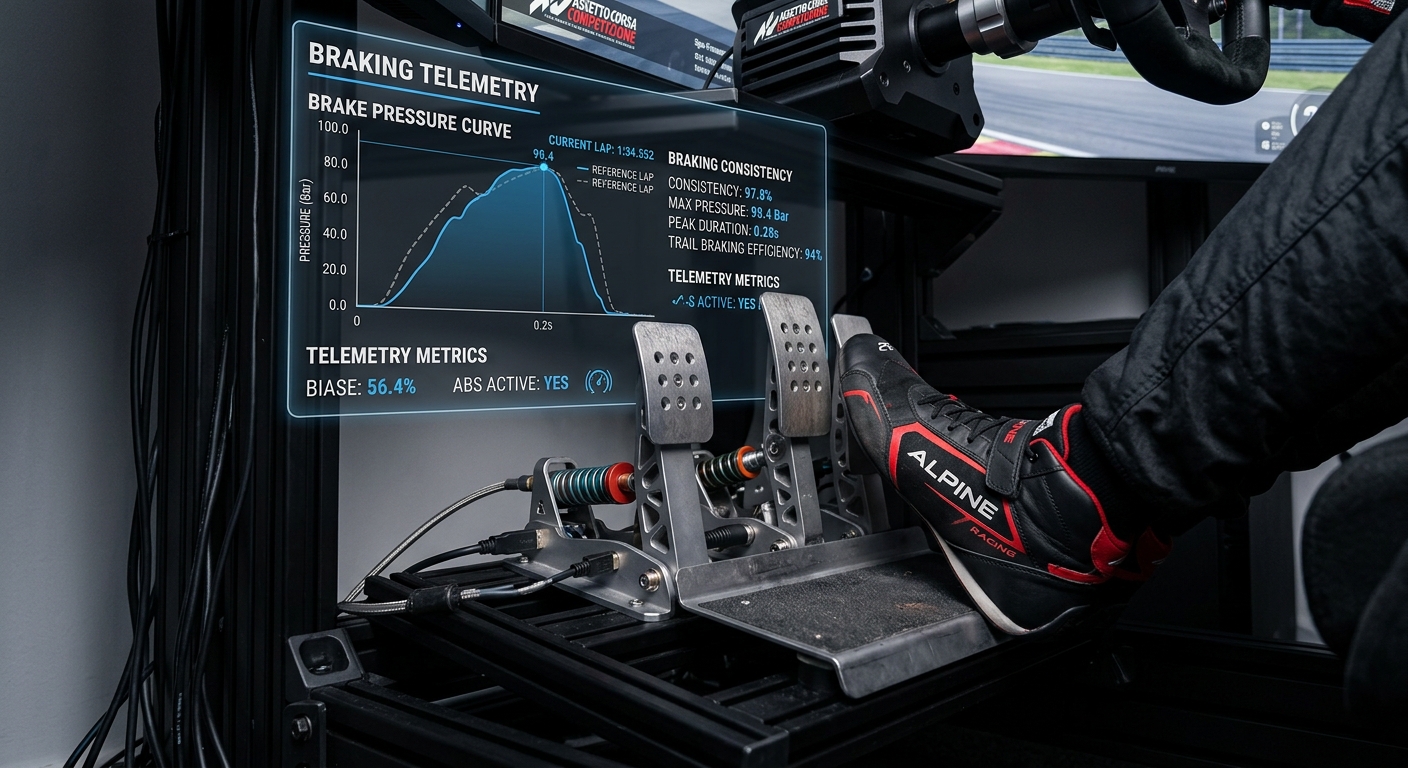

If you are using a Playseat Challenge, consider "Indigo Lime" or similar reinforcement kits that stiffen the steering wheel joint. Once the mechanical flex is removed, you can begin to trust the feedback you're receiving. After stabilizing your hardware, many drivers find it useful to use RaceData AI to analyze their load-cell telemetry, ensuring that their braking inputs are consistent now that the physical "rig-flex" variable has been eliminated.

Essential Hardware: Bolts, Washers, and Adapters for a Rock-Solid Setup

To complete your installation, skip the hardware included in the box and head to a local supplier for these essentials:

• M6 Bolts (Varying Lengths): Moza bases typically use M6 threads. Ensure your bolts are long enough to pass through your adapter plate and the rig deck with at least 10mm of thread engagement.
• Fender Washers: Use extra-wide washers on the underside of your mounting plates to distribute the clamping force over a larger surface area, preventing the bolts from "pulling through" thin metal.
• Nyloc Nuts: Direct Drive wheels create high-frequency vibrations that can loosen standard nuts. Always use nylon-insert locking nuts to ensure your rig doesn't rattle apart mid-race.
