From CAD to Cockpit: The Data-Driven Guide to Tuning Suspension in Assetto Corsa

from-cad-to-cockpit-suspension-tuning-assetto-corsa

Visualizing the complex interaction between mechanical components and digital telemetry data in a modern race car.

Master the transition from real-world physics to virtual performance. Learn how to tune springs, dampers, and ARBs in Assetto Corsa using professional telemetry analysis.

The Physics of Feel: Why Spring Rates Are Your Foundation

Spring rates are the primary component in defining how a car’s chassis reacts to vertical loads. In high-downforce environments common in Assetto Corsa, springs must be stiff enough to maintain a consistent ride height, protecting the aerodynamic platform from stalling when the car bottoms out. Conversely, on bumpy circuits, softer springs allow the tires to follow the contours of the track, maintaining a larger contact patch and providing more mechanical grip. Finding the balance between aero stability and mechanical compliance is the first step in any technical car setup.

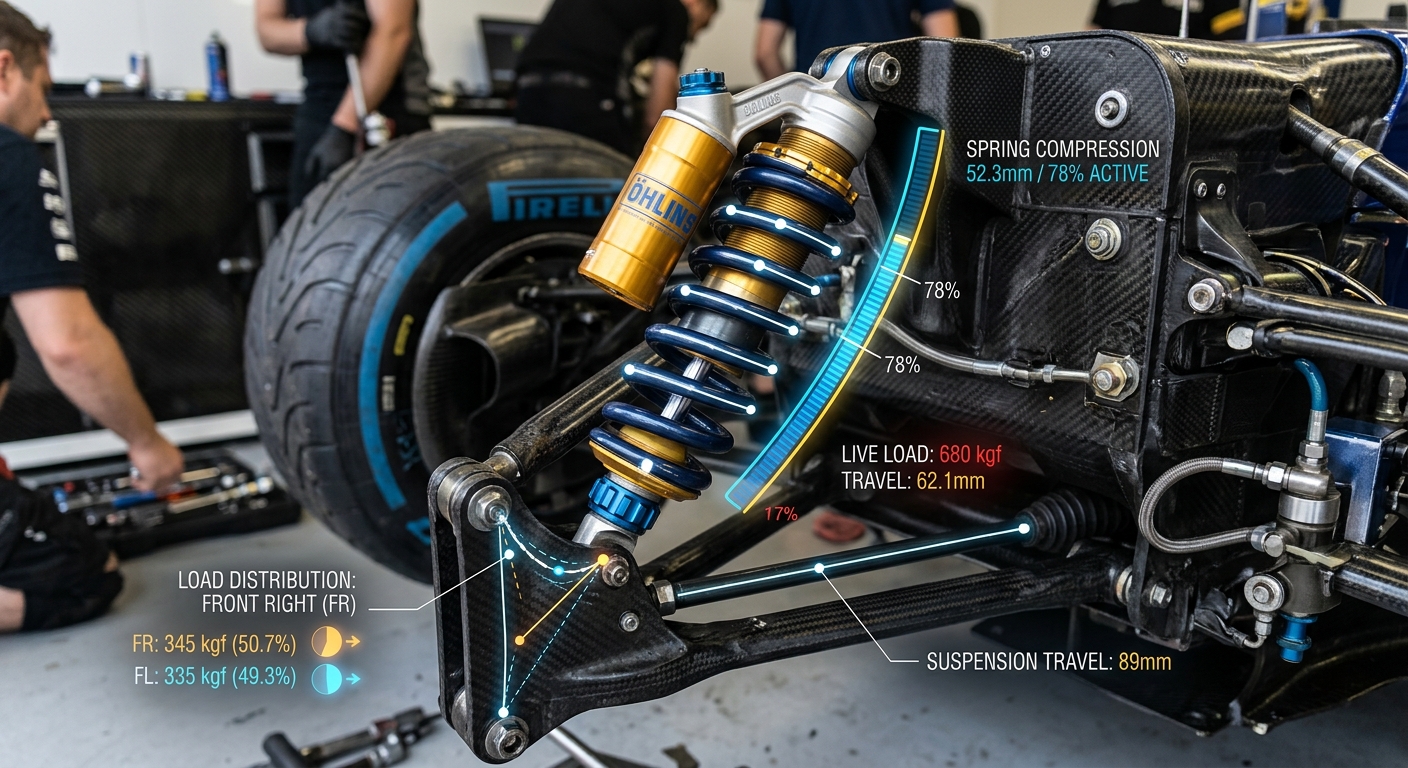

Spring rates form the foundation of a stable aerodynamic platform and predictable mechanical grip.

Damping 101: Managing the Speed of Weight Transfer

While springs dictate the total amount of roll or pitch, dampers control the speed at which these movements occur. Dampers are critical during the transition phases of a corner, such as moving from the brakes to the steering or from the apex to full throttle. By adjusting the bump and rebound settings, drivers can influence how quickly the weight settles. Proper damping ensures that tire load remains consistent, preventing the car from feeling bouncy or unresponsive during quick directional changes.

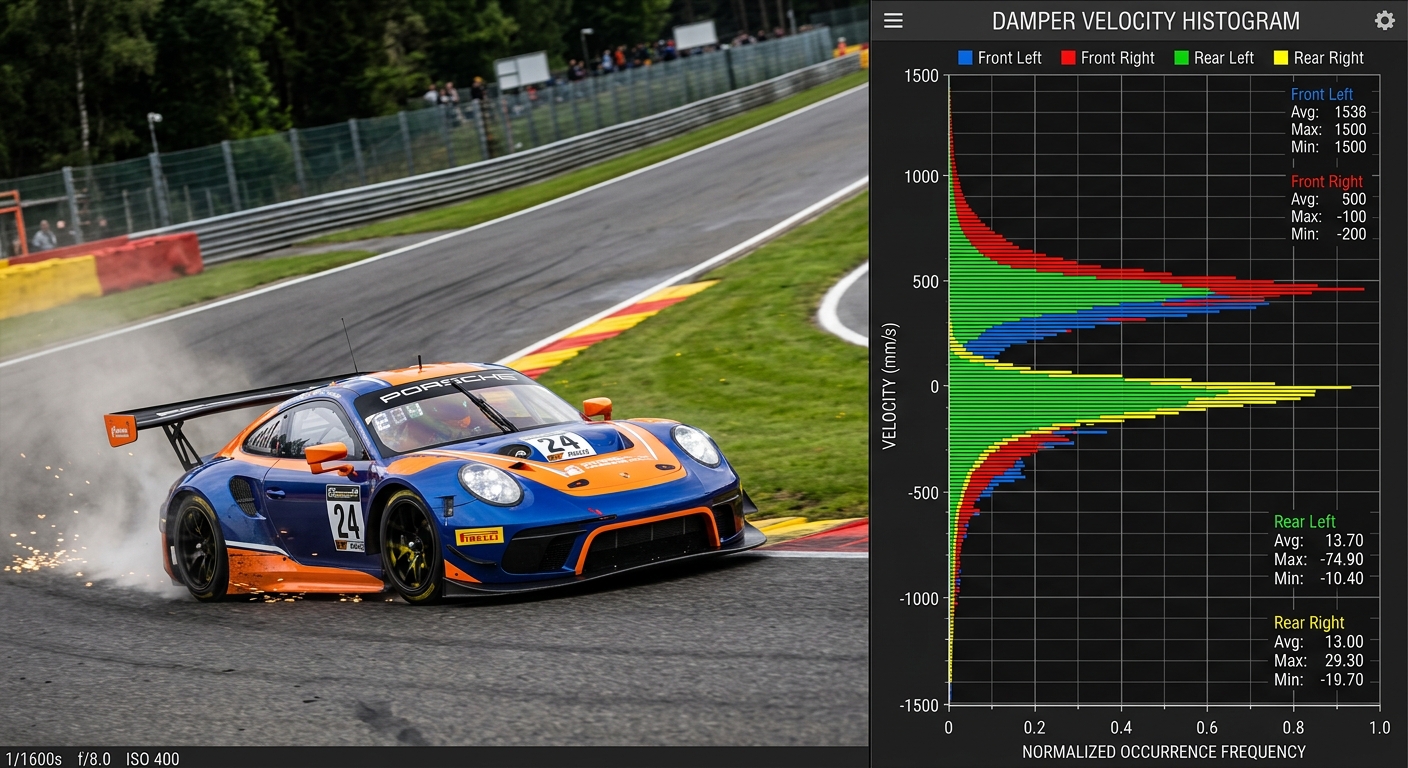

Dampers are essential for controlling the speed of weight transfer during aggressive cornering maneuvers.

Balancing the Chassis: Fine-Tuning with Anti-Roll Bars

Anti-Roll Bars (ARBs) allow for fine-tuning the lateral load distribution without significantly affecting the vertical spring rate. This makes them the go-to tool for fixing mid-corner balance issues like understeer or oversteer. To move beyond subjective feel, sim racers should use telemetry tools to analyze suspension travel. By viewing suspension histograms, you can objectively see if the car is hitting the bump stops or if the dampers are working within their optimal range. This methodology allows for back-to-back testing that relies on objective lap times and data.

Using telemetry logs allows drivers to validate setup changes with objective data instead of relying on subjective feel.

FAQ

How do spring rates affect car stability?

Spring rates determine the car's mechanical grip and aerodynamic platform stability. Stiffer springs keep the car level under high aero loads, while softer springs improve grip over bumps.

What is the role of dampers in sim racing?

Dampers control the speed at which weight is transferred during transitions like braking or turning. They manage the spring's energy to keep the tire contact patch stable.

How do I fix understeer using ARBs?

To reduce understeer, you can soften the front anti-roll bar or stiffen the rear anti-roll bar to shift the mechanical balance of the car.

Why is telemetry important for suspension tuning?

Telemetry provides objective data on suspension travel and velocity. It removes the guesswork by showing exactly how the chassis is reacting to the track surface and driver inputs.

What should I look for in a suspension histogram?

A suspension histogram shows the percentage of time the dampers spend at various velocities. Ideally, you want a symmetrical bell curve shape to ensure balanced bump and rebound control.
